How to set up an external Syslog server configuration in FortiOS Fortigate

Set up an external Syslog server in your FortiGate Instant AP to forward Syslogs to Cloudi-Fi

Prerequisites

Before starting, ensure that you have the following prerequisites:

• Access to the FortiGate.
• Cloudi-Fi captive portal configuration in FortiOS completed

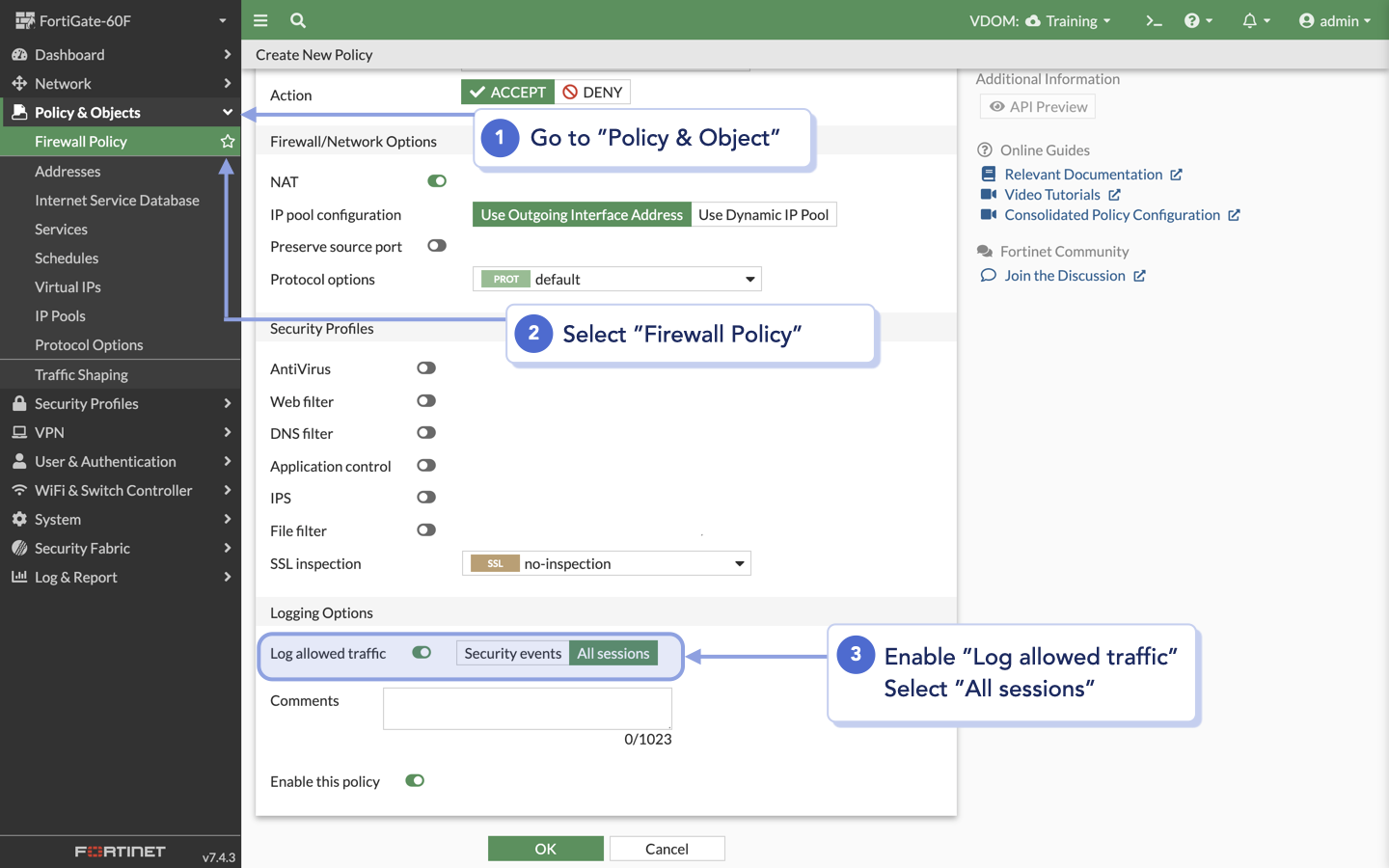

1. Enable rules for all sessions

• Go to Policy & Objects
• Select Firewall Policy

For each Policy enabled for the Cloudi-Fi captive portal, ensure the Log Allowed Traffic option is on for All Sessions.

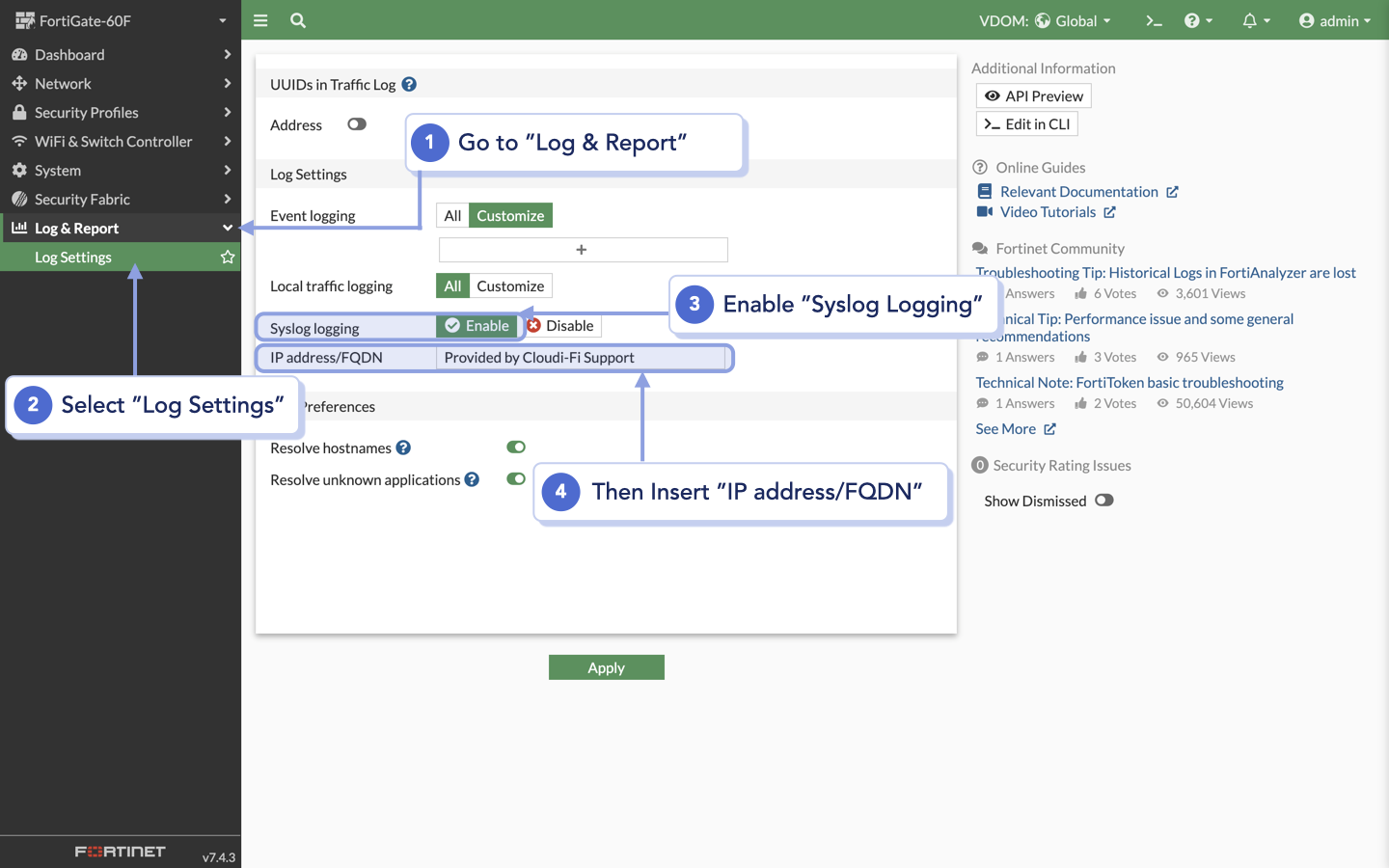

2. Add the IP address of the Cloudi-Fi Syslog server

• Go to Log & Report
• Select Log settings

Under the Local traffic logging section

• Enable Syslog logging

• IP Address/FQDN: RADIUS & SYSLOG servers

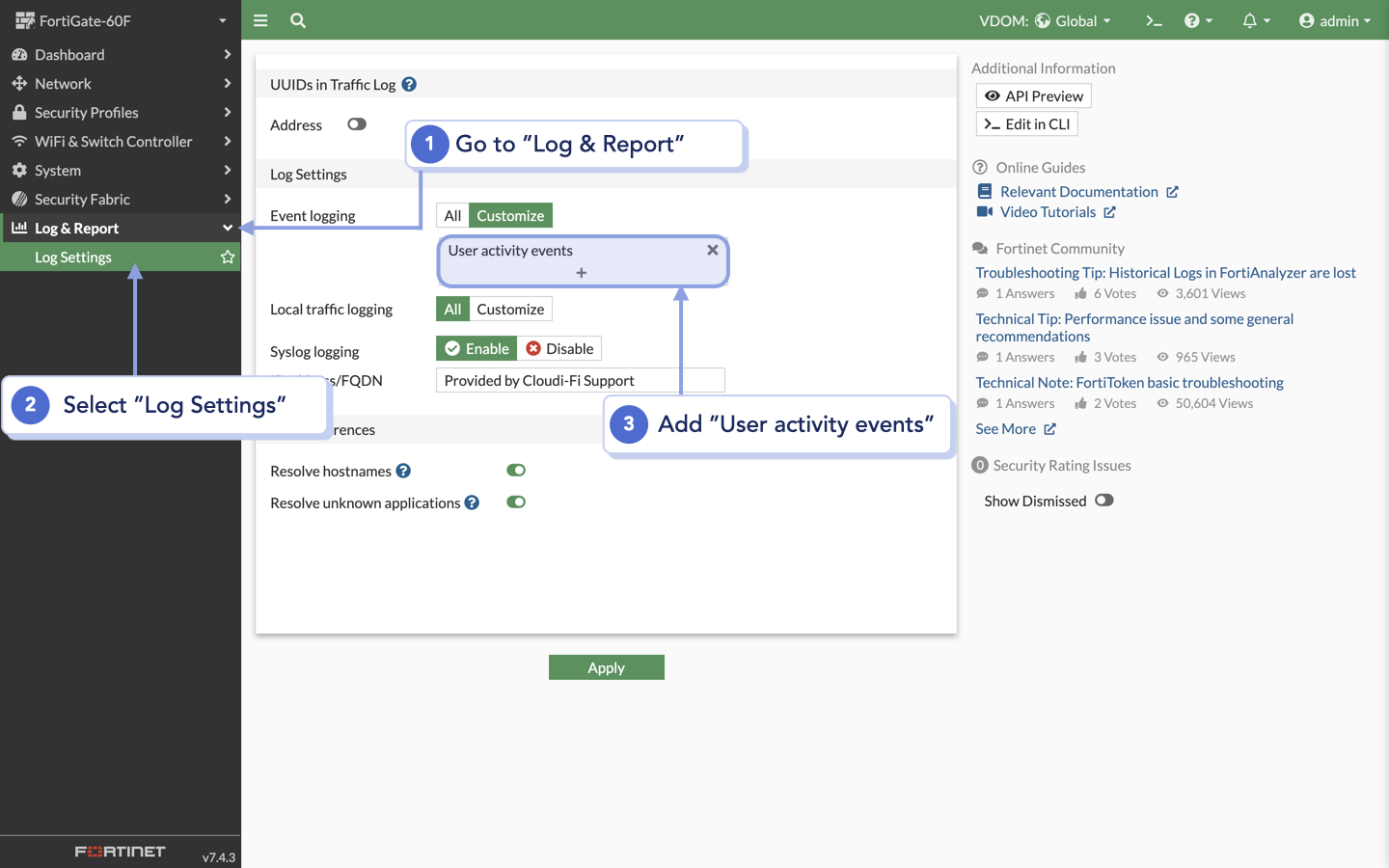

3. Add user activity events

• Go to Log & Report
• Select Log settings
  • Under the Log Settings section

• Select or Add User activity event

4. Syslog over TLS

To send your logs over TLS, see below the corresponding CLI commands :

config log syslogd setting
# Activate syslog over TLS (reliable mode)
set mode reliable
set certificate "xxxxxxxxx"
set port 6516
end

# Enter "yes" to validate the port 6516

Please ask to Cloudi-Fi support the necessary certificate if you don't already have it.

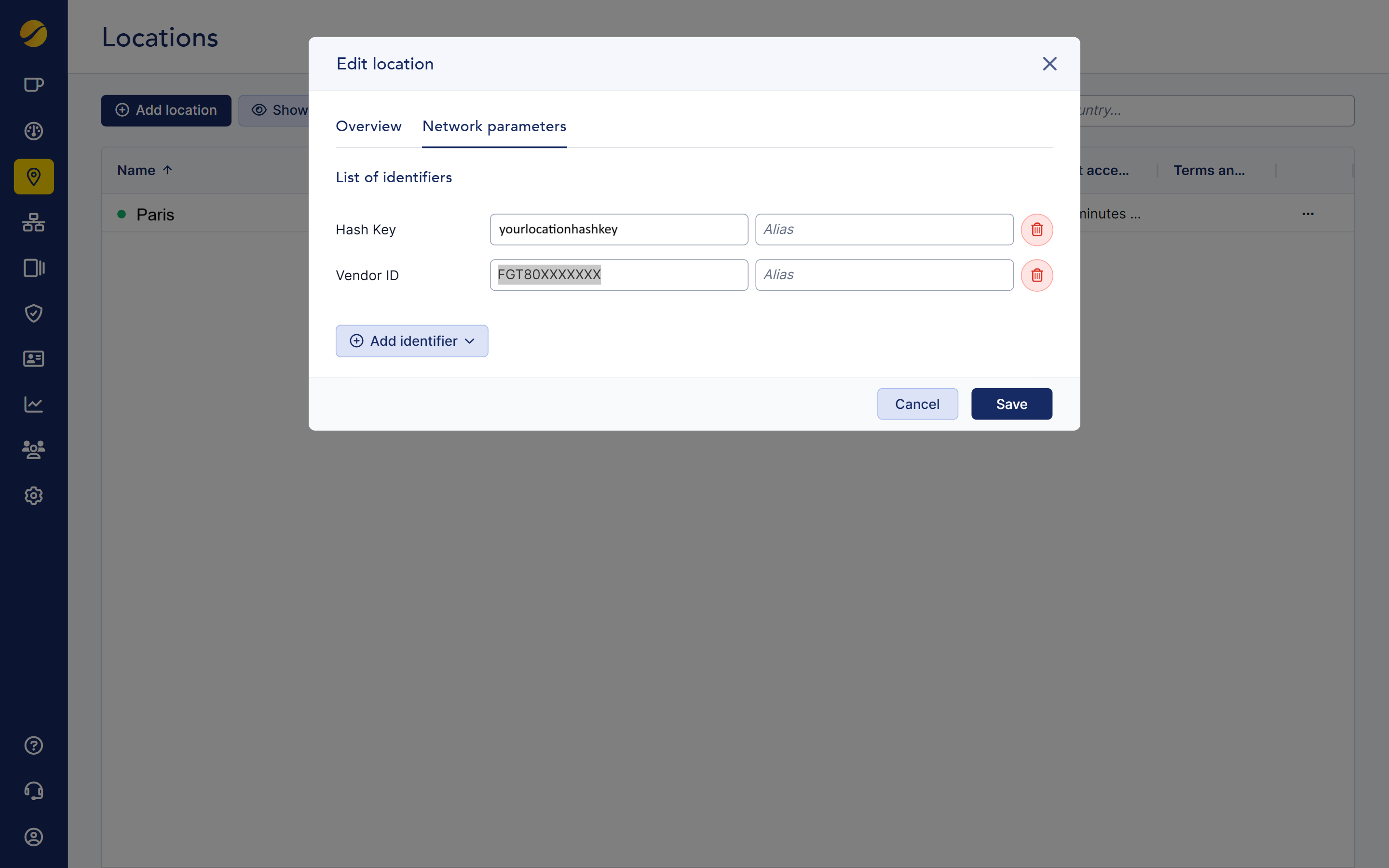

Please add your firewall hostname as "Vendor ID" identifier under Locations > Network Parameters :

This is necessary to match the logs we receive with your Cloudi-Fi tenant & location.
