How to set up SAML authentication for your Sponsors with Okta

Alexandre de THOMASSON
  • Updated

Step-by-step instructions to set up a SAML authentication for your Sponsors with Cloudi-Fi and Okta.



Use case

The following sections will provide step-by-step instructions to SAML authentication for your Sponsor with Cloudi-Fi and Okta.



Prerequisites

SAML URLs

  • Navigate to the Cloudi-Fi Admin user interface (UI)

  • Go to Configuration > Auth modes > Sponsor

  • Collect the necessary information

Linkback URL

https://portal.cloudi-fi.net/auth/module.php/saml/sp/saml2-acs.php/sp-sponsor/************

  • *****  is your Cloudi-fi public key (Go to your Cloudi-fi Admin interface > Settings > Company Account)

Cloudi-Fi Entity ID

https://portal.cloudi-fi.net/



1. Create your Okta SAML application

Go to your Okta portal and switch to "Classic UI" mode.

Go to the Application section, and add a new application.

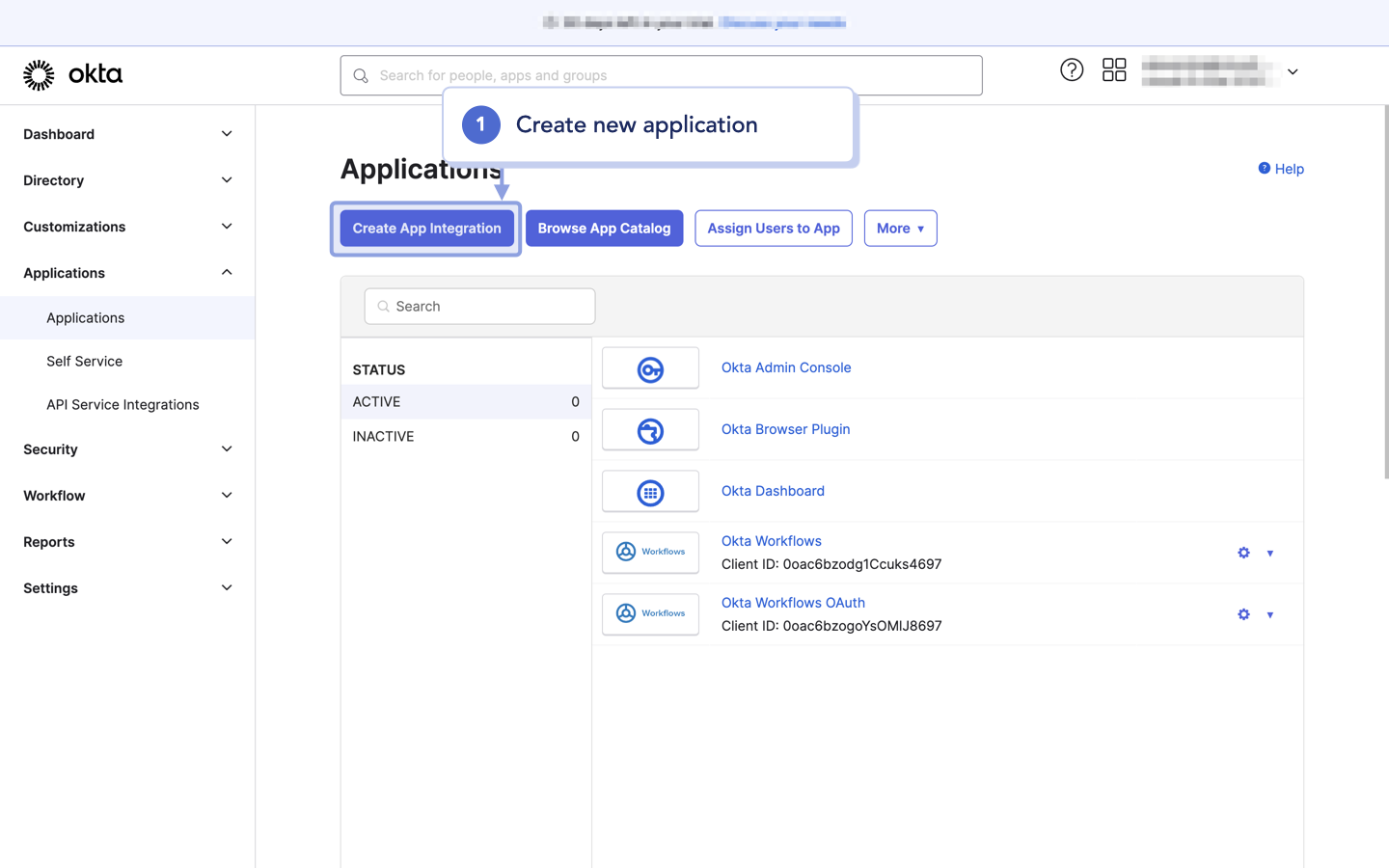

Click on Create a new Application Integration.

cloudi-fi_okta_saml_create a new application_1.png

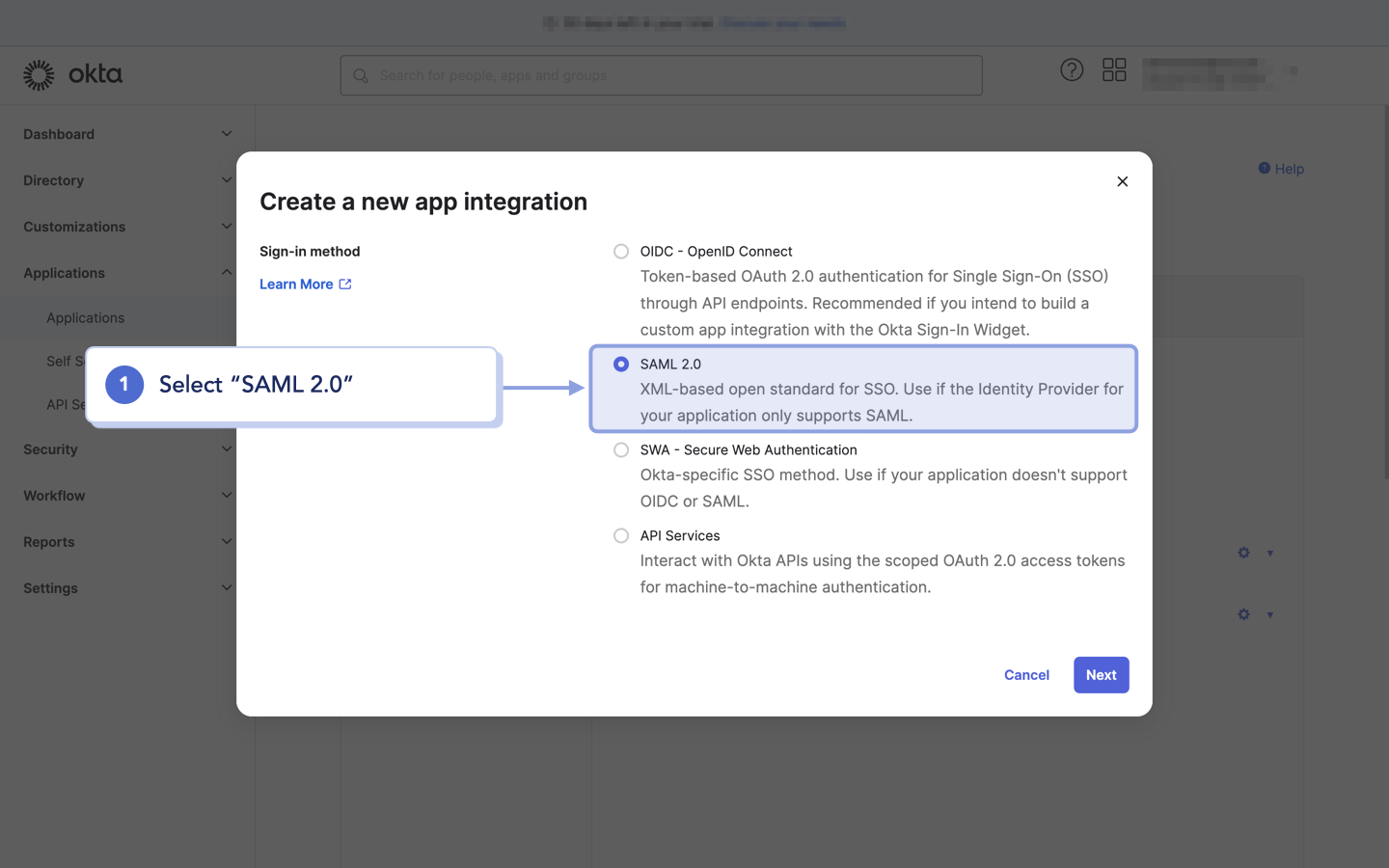

Then, select SAML 2.0

cloudi-fi_okta_saml_create a new application_2.png

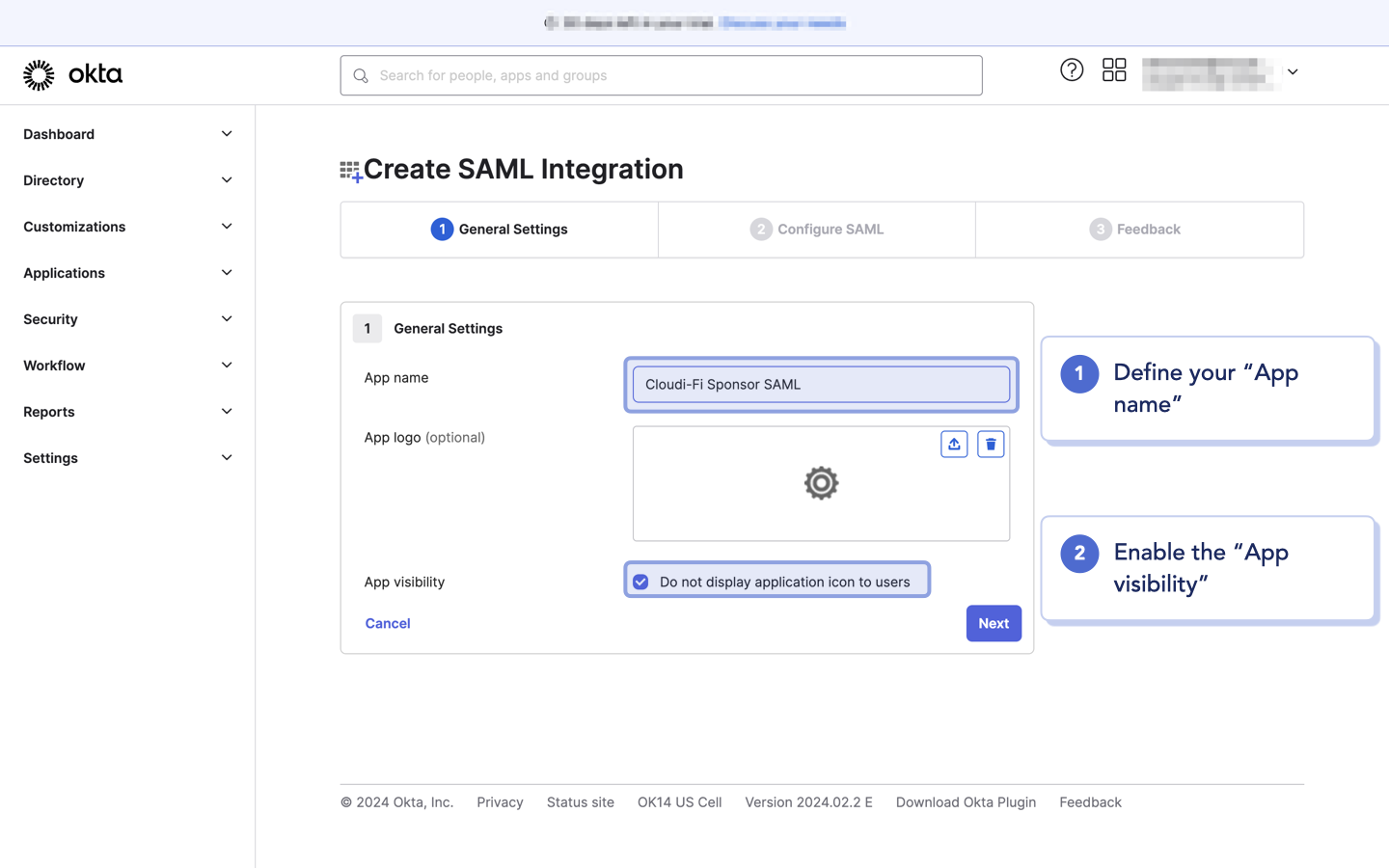

In the General Settings page, define your App name (for instance : Cloudi-Fi Guest SAML) and click on Next

cloudi-fi_okta_saml_create a new application_general settings_sponsor.png

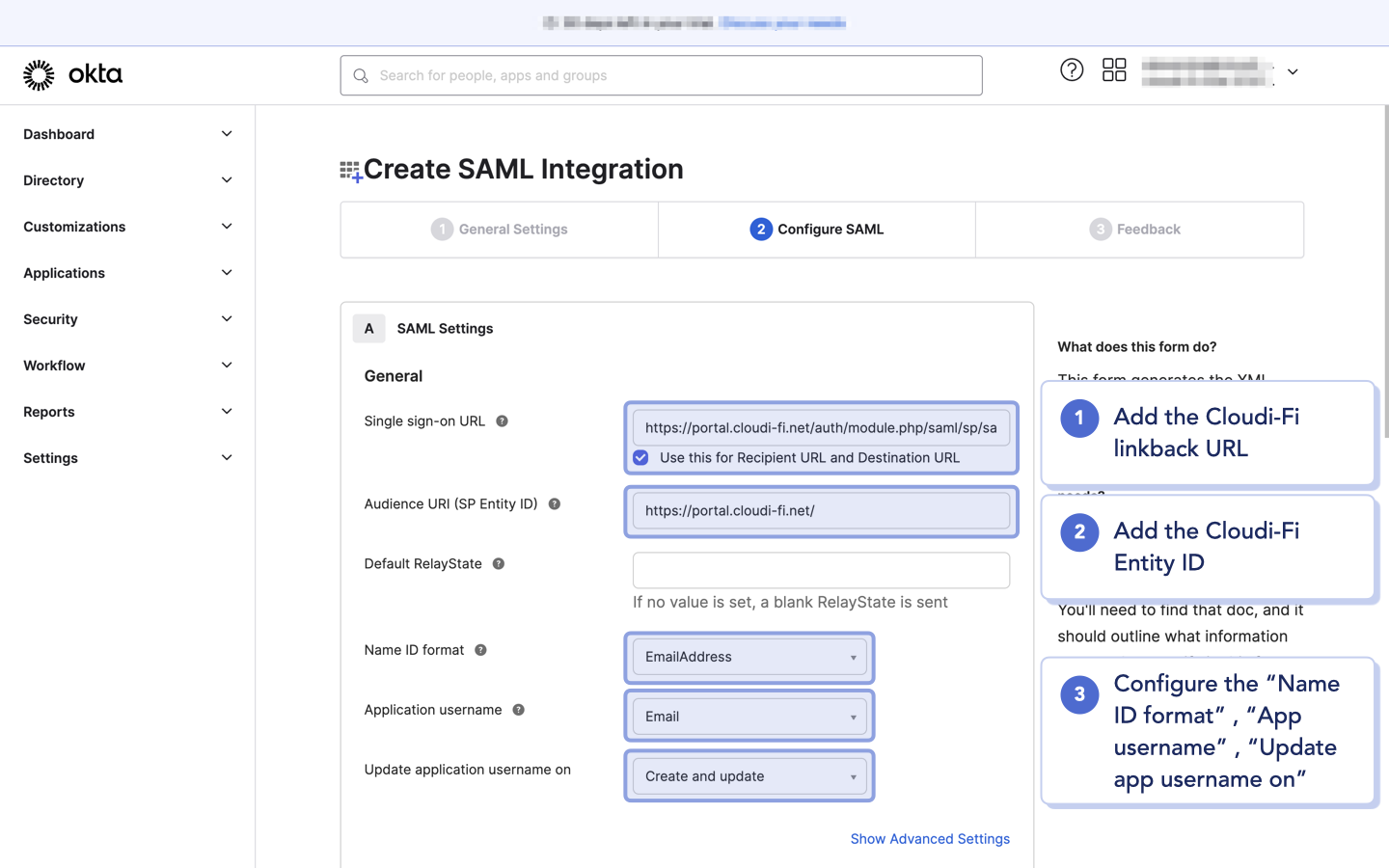

In Configure SAML page

  • Linkback URL :

    • https://portal.cloudi-fi.net/auth/module.php/saml/sp/saml2-acs.php/sp-sponsor/<company_key>

    • To find your <company_key> , go to the Cloudi-fi Admin interface > Settings > Company Account.

  • Cloudi-Fi Entity ID :

    • https://portal.cloudi-fi.net/
  • Name ID format : EmailAddress
  • Application username : Email
  • Update application username on : Create and update
  • Attribute Statement
    • Name : mail
    • Value : user.email

cloudi-fi_okta_saml_create a new application_sponsor_configure SAML_1.png

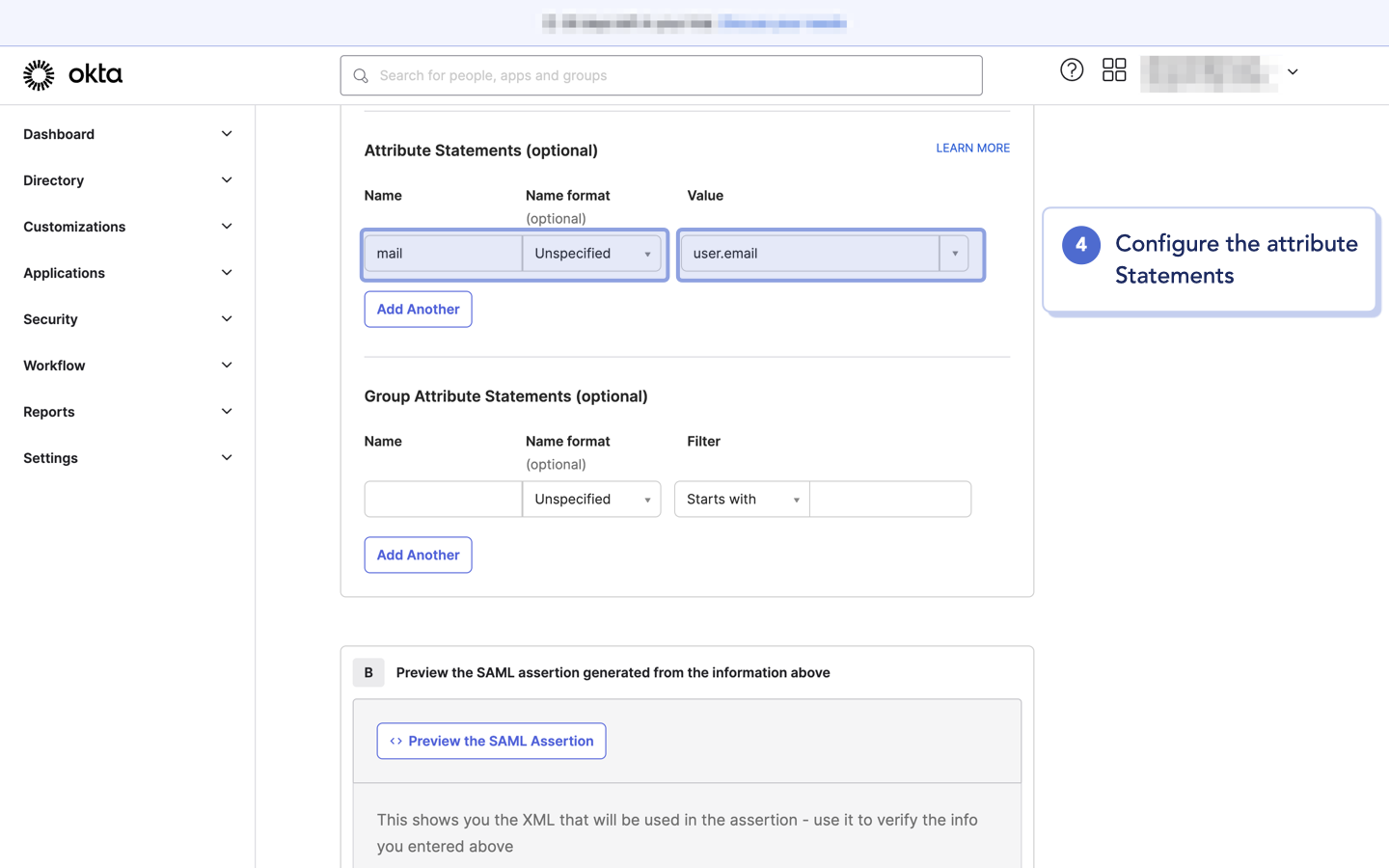

cloudi-fi_okta_saml_create a new application_configure SAML_2.png

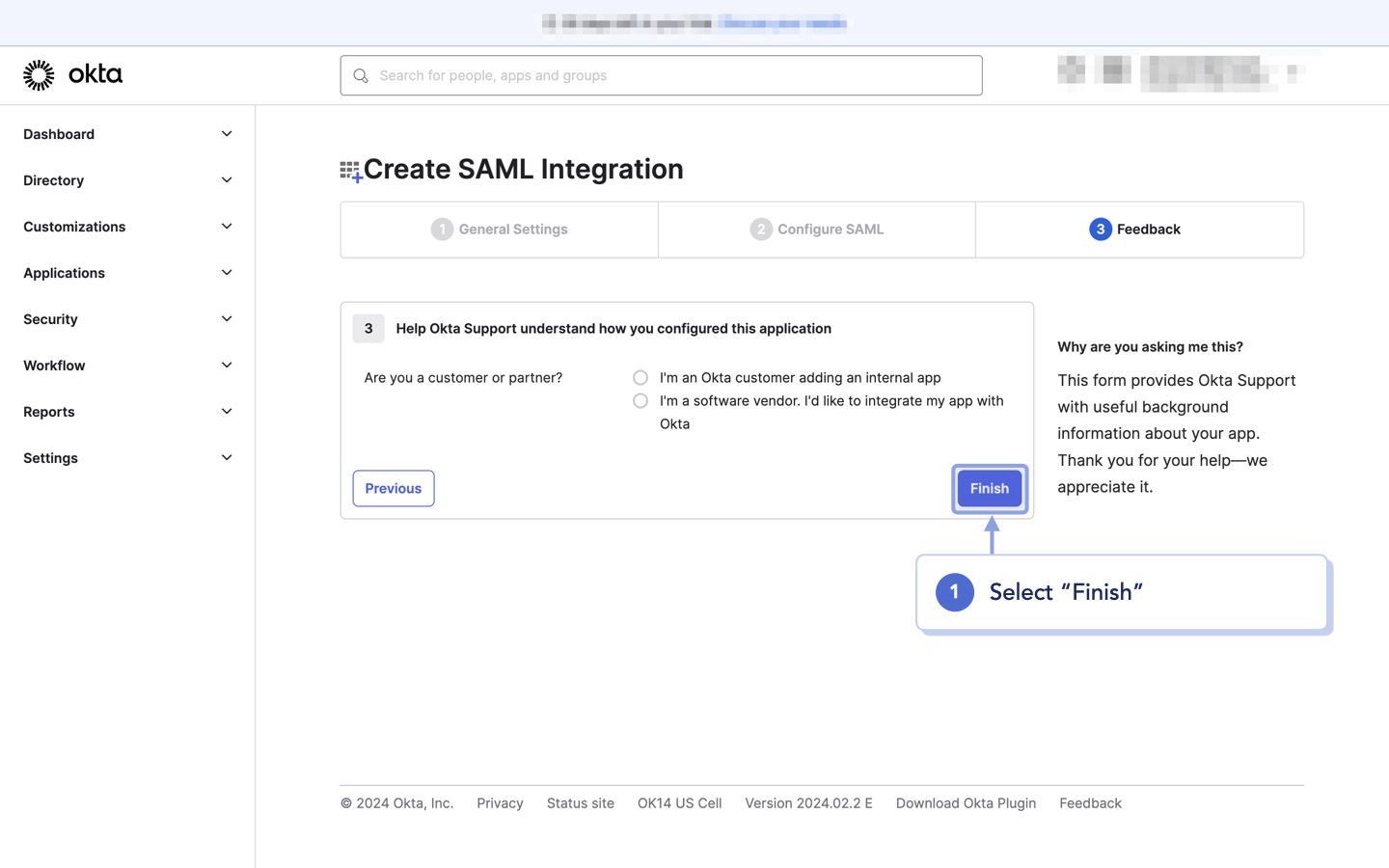

In Feedback page, click on Finish

cloudi-fi_okta_saml_create a new application_feedback.png

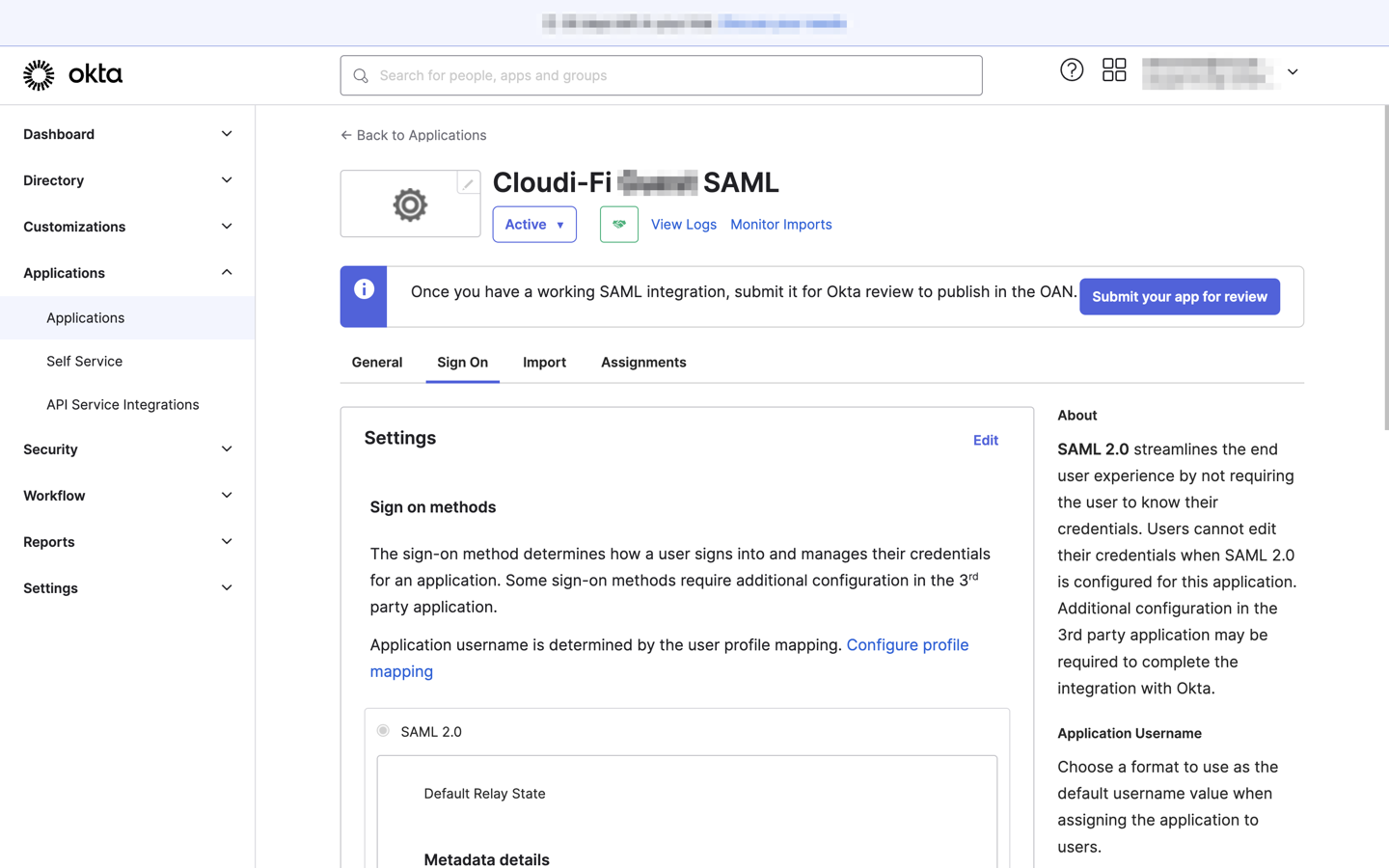

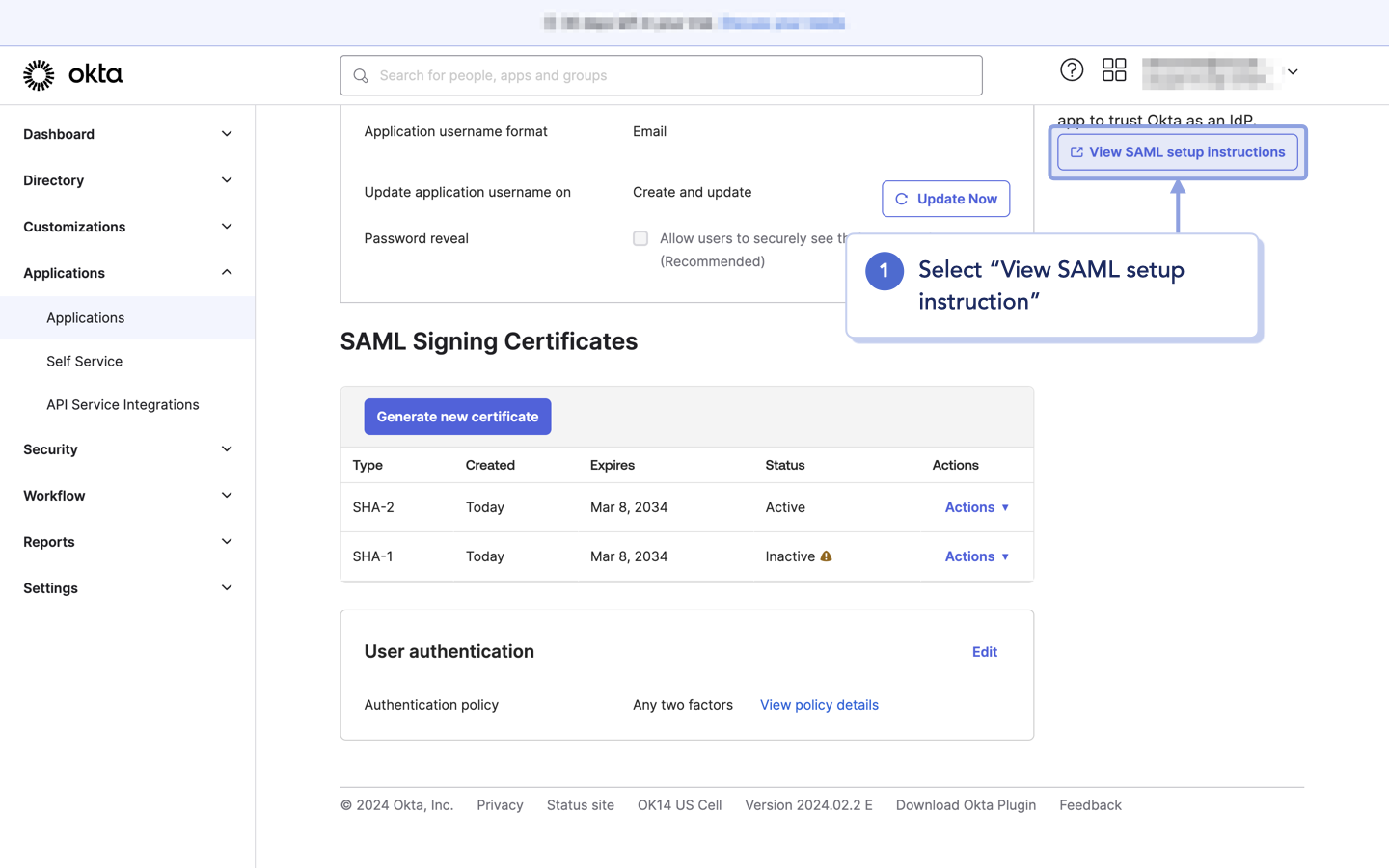

Once the Cloudi-Fi application is created on Okta, click View SAML Setup Instructions to retrieve technical information to be configured on the Cloudi-Fi portal.

cloudi-fi_okta_saml_create a new application_end.png

cloudi-fi_okta_saml_create a new application_view SAML instructions_1.png

Here are needed information :

  • Identity Provider Single Sign-On URL

  • Identity Provider Issuer

  • X.509 Certificate

cloudi-fi_okta_saml_create a new application_view SAML instructions_2.png

2. Cloudi-Fi configuration

To start step 2, make ensure you have all of these information

Attributes_name
(in Okta) 		Attributes_name
(in Cloudi-Fi) 		Details
Single sign-on URL Linkback URL
https://portal.cloudi-fi.net/auth/module.php/saml/sp/saml2-acs.php/sp-sponsor/<company_key>
SP Entity ID Cloudi-Fi Entity ID
https://portal.cloudi-fi.net/
Identity Provider Issuer IdP EntityID
http://www.okta.com/*********
Identity Provider Signle Sign-On URL IdP Endpoint
https://******/app/****/*****/sso/saml
X.509 Certificate IDP Signing Certificate (X509 (Base64)
Attribute Statements / Name Email_address Claims
mail

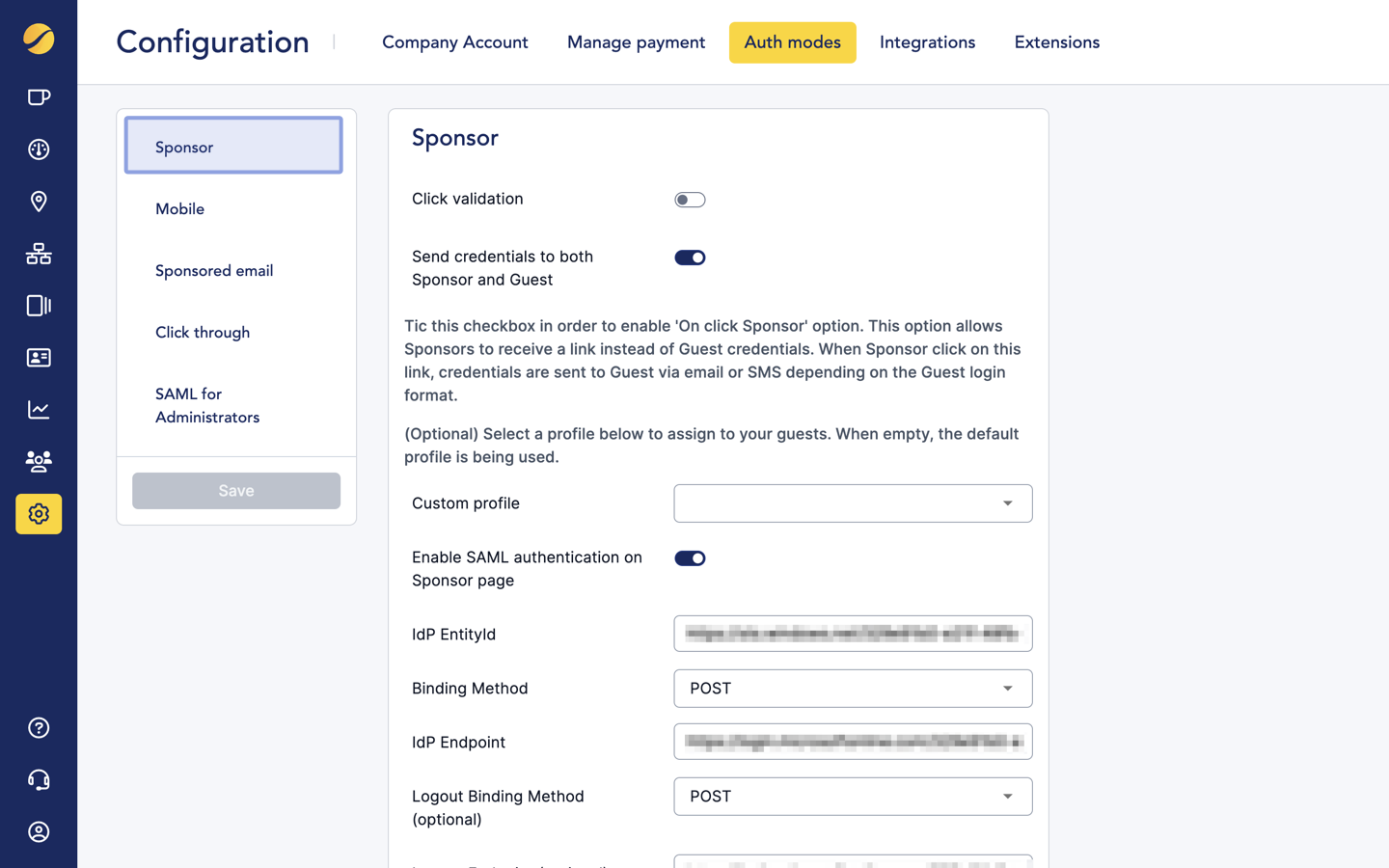

Navigate to the Cloudi-Fi Admin user interface (UI)

 Access Configuration > Auth modes > Sponsor

Enter the required values into the respective fields

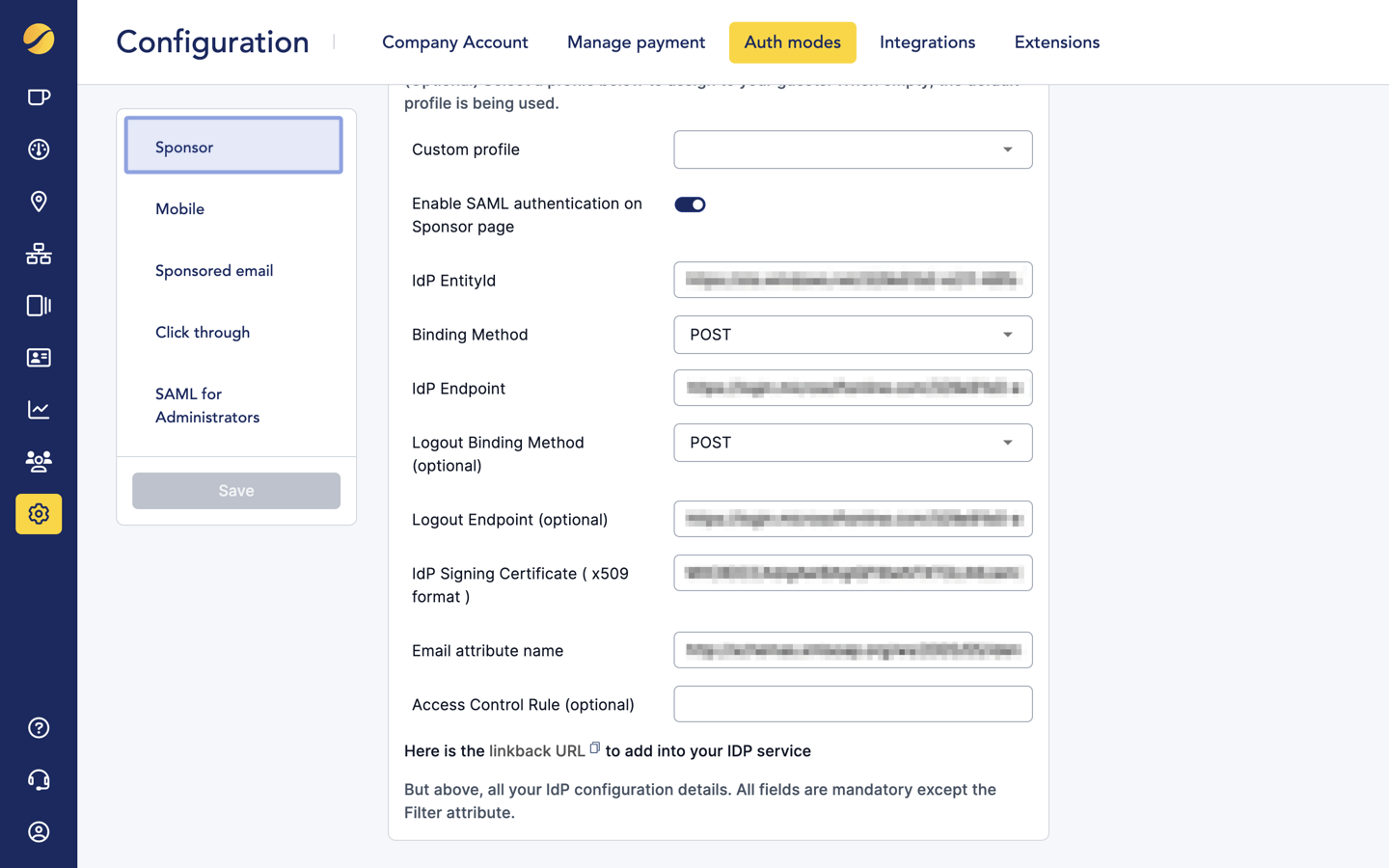

cloudi-fi_admin_saml for sponsor_okta_configuration_1.pngcloudi-fi_admin_saml for sponsor_okta_configuration_2.png

Fill out the form as described below with details previously retrieved on Okta:

  • IdP EntityId : Identity Provider Issuer
  • Binding Method : POST
  • IdP Endpoint : Identity Provider Single Sign-On URL
  • Logout Binding Method : POST
  • IdP Signing Certificate : X.509 Certificate without "Begin Certificate" and "End certificate" markers
  • Email attribute name : mail

Finally, click on Save



Troubleshooting

Okta error message

A Sponsor_administrator access to the application and he is redirected to Okta authentication Page. He fills out his (email_address, password) and Sign-in. Then he is redirected to an Okta Error Page.

Please replay the process and perform a HTTP capture (Perform a Web Request capture in the web browser) and open a ticket to Cloudi-Fi support with the capture attached (see How to contact your support?)



What's Next ?

Congratulations on enabling SAML authentication with Okta for your Sponsor_administrators.

If you have any issues or need more help, please refer to our support documentation or contact our support team.
